má to 65W? 100W? …. 15W? ROFL..
..měřím spolu s dalšíma, bude to zajímavý
..makin‘ measurements with another pieces.. stay tuned..
..there are tons of articles about this stepper..
..this is simplest solution i found.. there are few mistakes in the code, but i like it..
i did lol on whole thread how the guys grew up the code and made it far more complex
with weird function names for motor movement as well
they forgot that Arduinos have only 2KB SRAM(most of units sold) for whole project
so we cannot spent huge part of it to make work single part
the idea of the original code is far better than the complex mess from the coolguys..
its not generally wrong to use digitalWrite and its not necessary to use direct port manipulation like tha guys recommended because of the sequential type of the movement..
main problem of the original code is that there is attempt to be correct and make steps somewhat aligned to time with 4x digitalWrite in a row so it delays the desired change of state by variable but repeating amount of time
correct is that there is just one change per the substep and make timing between these same way as datasheet says..
to be fine we must also introduce possibility to add sort of delay between the steps with all coils off as the original code makes stepper pretty hot after a while of high speed..
we should also care of full step and wave drive techniques so we can reach higher speeds than with halfsteps in the original code.. meh..
also i did get from 190 bytes of precious SRAM usage(serialPrint and so on) of the original code(not to mention the coolguys memory bombz lol) to 9 bytes (!) least for working code and 11 bytes in my „light“ version with no precise timing, just the steps and sort of „speed“ (aka delay)
with timing mem usage is somewhat higher because of storing time variables as float type..
this can be partially lowered as we can fiddle with memory storing..
here is version 0.9.0 beta for testing.. eats 11Bytes of SRAM
+ half steps both directions
+++ wave drive!!!
+ ability to set speed
+ full torque for testing
* be cautious with the testing full torque halfstep function, theres need to use stepper_sleep() func after >ending< sequence of these or even single step to turn coils off -> less heat.. its not used in demo code in loop() section. you have to add call to that func to test.. also its good to call stepper_sleep() before to ensure that all OUTs are LOW..
..as i sometimes do run out of memory on my arduino projects i did search for some other options than reducing amounts of data used..

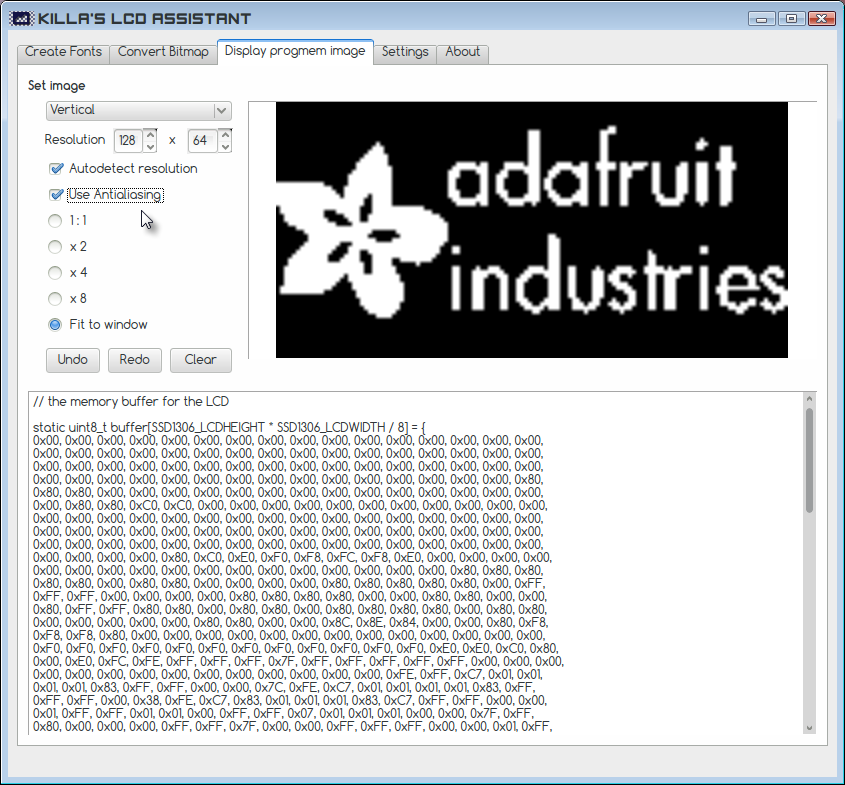

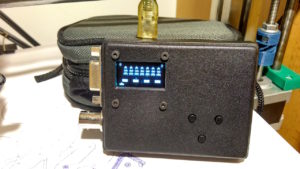

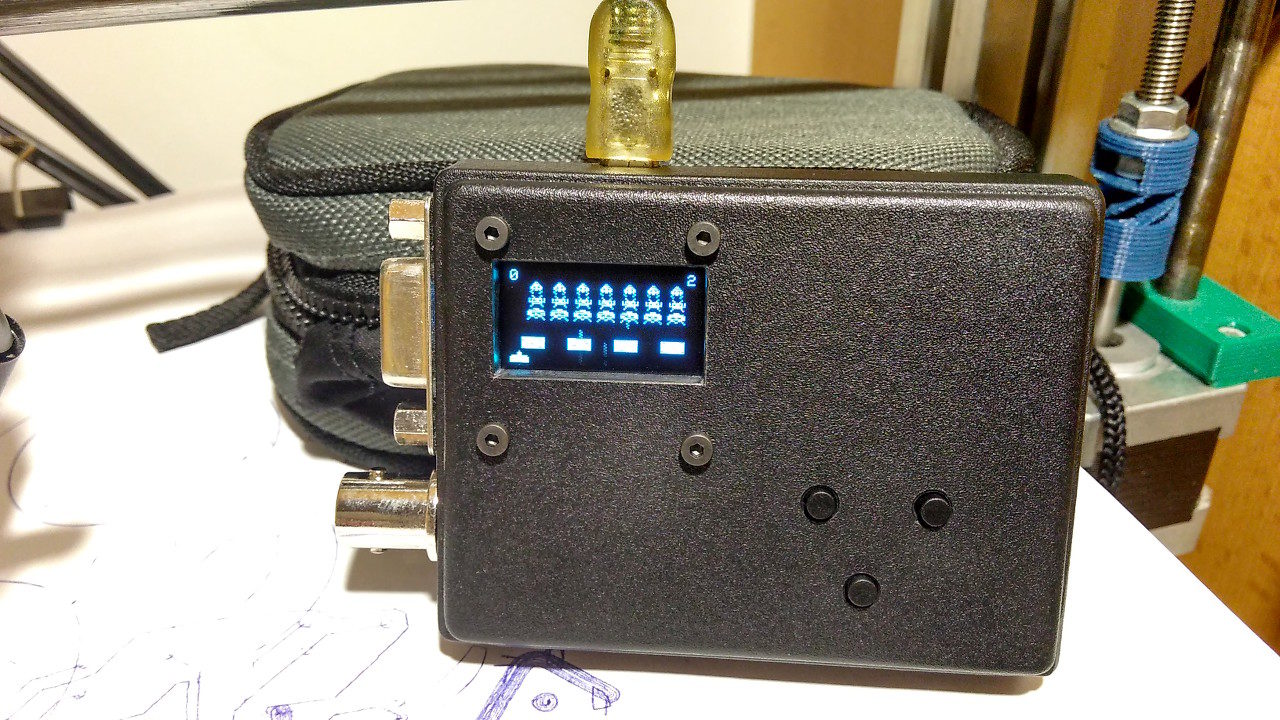

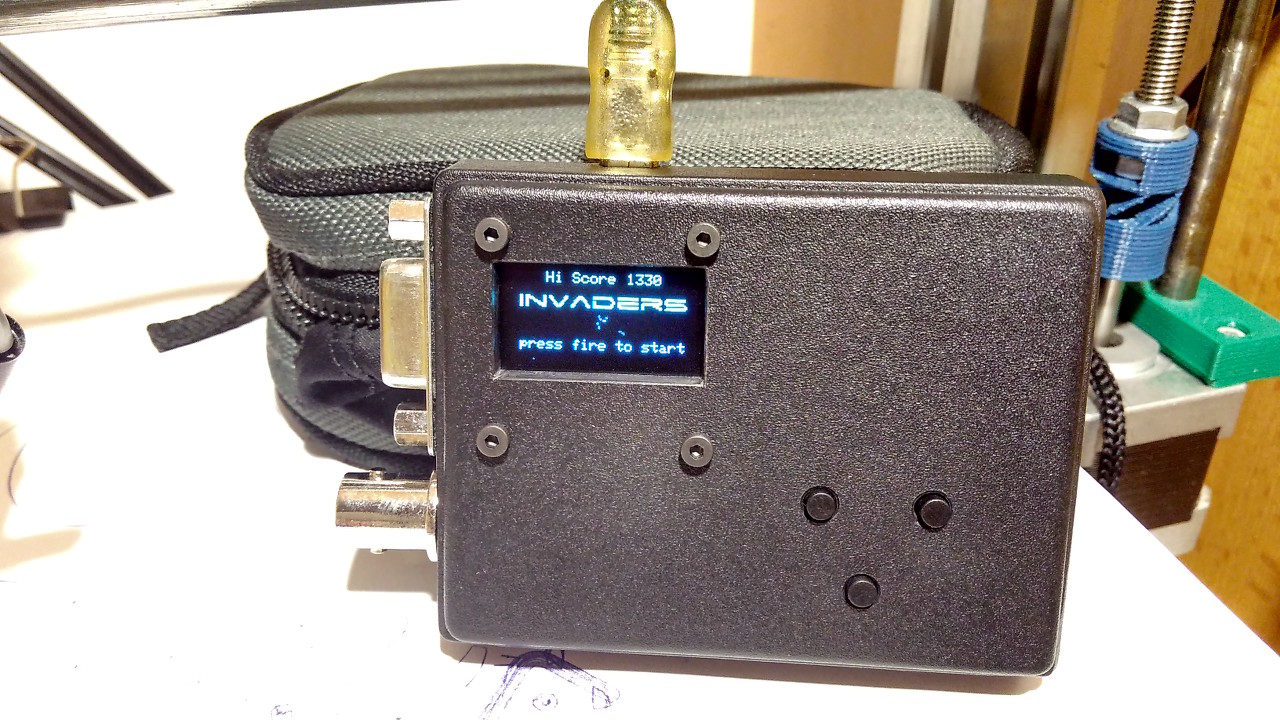

For example in my recent project with display a display buffer does eat 1024 bytes of 2048 bytes total so there is not much SRAM to work with for the rest of the sketch..
23LCV512-I/P 64kx8bit SRAM 20MHz SPI
IP12B256I-TU 32kx8bit SRAM 20MHz SPI
IP12B512C-TU 64kx8bit SRAM 20MHz SPI
read/write operations with modified library
read/write simpler way directly from sktech, without library
update 29/3/2017: ICs ARRIVED!
* still under development, current version is 0.99-2
* complete package with libs for download will be here soon.
I was quite sure that this wont work, but we have been forced to try.. Not that much..
Normally the LAN is got over FTP and UTP cables, aka the twisted ones.. Yeah, the twisted wires.. Or even twisted pairs of twisted wires.. Cat6e has 6 twists per inch..
But using old 12 x 1.5mm² AC mains cable with no twists which is 20 to 30 meters long, is under ground and dated to late 70′s or 80′s must fail..or..?
why this could work?
1st: i used only 10Mb/s mode
2nd: we were totally lucky
update 2/2017: i will be finishing this project soon!

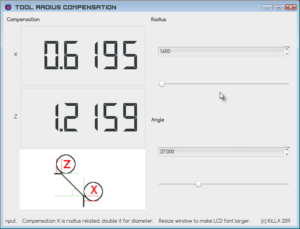

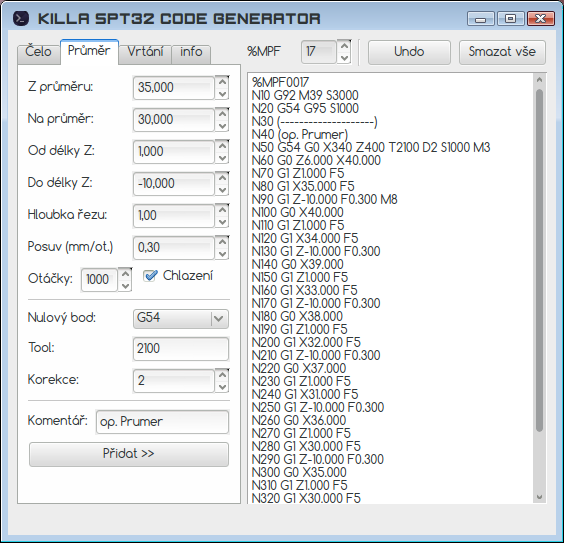

Last month i have been asked to code program to my work..
It took huge amounts of time.. but.. it was fun to hack Windoze
what does it do:
recent version 220.127.116.11 source code has size of ~30kB
..Windows may look quite good in chart, but gears were choppy and had huge tearing.. Linux based systems performed smooth with no vsync.. Nouveau driver has kinda slow 3D yet..
